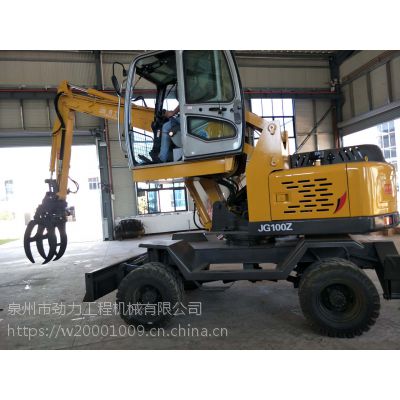

| JG-100Z 柱塞泵挖掘机技术参数: |
| 工作范围Range of operation |
| 动臂长度 Boom length | 3830mm |
| 斗臂长度 Arm length | 1615mm |
| 挖掘距离 Maximum Digging Reach | 7000mm |
| 挖掘深度 Maximum Digging Depth | 4000mm |
| 挖掘力 Maximum Digging Force | 60KN |
| 挖掘高度 Maximum Digging Height | 6500mm |
| 卸载高度 Maximum Dumoing Height | 4600mm |
| 后端回转半径 Back-end radius of gyration | 1850mm |
| 外型尺寸Dimensions |
| （总长*总宽*总高）运输状态(Length*width*height)travel position | 6450*2200*2950mm |
| 轴距 Wheel base | 2620mm |
| 轮距 (前/后) Track(Front/rear) | 1930mm |
| 配重离地间隙 Ground clearance of counterweight | 1250mm |
| 最小离地间隙 Min ground clearance | 230mm |
| 技术性能参数Tech performance and specification |
| 旋转角度 Angle of rotation | 360° |
| 整机重量 Machine weight | 8500kg |
| 发动机型号 Engine model | YN38GBZ/4102增压 |
| 额定功率 Rated Power | 65KW |
| 额定转速 Rated Speed | 2400r/min |
| 液压系统工作压力 Hydraulic system working pressure | 21Mpa |
| 液压系统流量 Hydranlic system flow | 150L/min |
| 变量柱塞泵 Variable piston pump | 71ml/r |
| 牵引力 Max Hauling force | 58.5KN |
| 行驶速度 Walking speed | 36km/h |
| 爬坡度 Grade Climbing ability | 58%/30° |
| 轮胎型号 Tyre model | 825.16 |
| 回转过载压力 Revolution Overdrive Pressure | 20Mpa |
| 全回转时间 Full circle swinging time | 5.5s |
| 挖掘斗容 Volume Of Bucket | 0.35m3 |
| 燃油量 Fqt Fuel Quantity | ≥6L/h |
| 燃油箱容量 Capacity Of The Fuel Tank | 137L |
| 液压油箱容量 Hydraulic Tank Capacity | 109L |
